Date Picker
Native date picker composition, package imports, and editable Swift source.

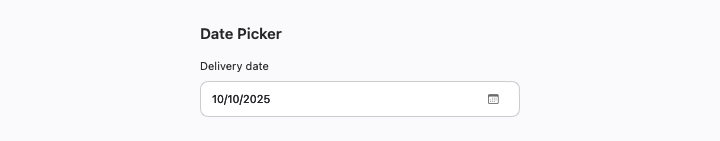

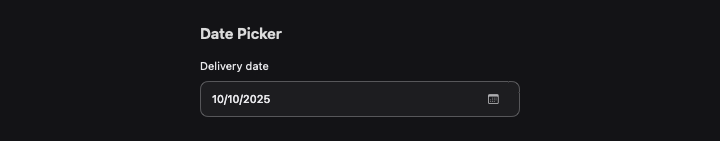

Preview


Use it
Import SwiftCN to use CNDatePicker directly. This complete example also runs in the native component gallery.
import SwiftUI
import SwiftCN
struct DatePickerExample: View {
@State private var date = Date(timeIntervalSince1970: 1_760_054_400)
var body: some View {
VStack(alignment: .leading, spacing: 12) {
CNDatePicker("Delivery date", selection: $date)
}
}
}Native behavior
A native formatted TextField supports locale-aware date editing. The calendar button opens the compact CNCalendar popup centered on the full input, with placement clamped to available space; selecting a day preserves the existing time and respects the allowed range. Date-and-time mode also includes a native time control. Time-only mode retains the native compact DatePicker. Locale, calendar, and time zone come from SwiftUI environment values. iPhone day cells keep full touch targets.
Style and compose
Visual recipes use .tw classes. Append classes: to override a recipe locally, or change the recipe in TWGlobalRules.named for your subtree. Native layout and interaction modifiers remain SwiftUI APIs. For control colors, append cn-tint-[primary], another theme token, or an interpolated Color.
Motion recipes are editable too: control-motion uses a 150 ms smooth response, disclosure-motion uses a 250 ms spring, and feedback-motion uses a 200 ms smooth response. Set a recipe to animate-none in your global rules to turn it off. Presets respect Reduce Motion. Static components stay still; native scrolling, drag tracking, and platform presentation keep their own gestures.
Action groups and card, dialog, and questionnaire footers stack when their content does not fit. The native layout preserves the same child controls during this change.
View builders preserve native child content. Native Button roles, labels, keyboard shortcuts, submit actions, and presentation modifiers still work. A string recipe does not replace a native control API or a typed chart mark.
Own the source
Copy the complete file below into your app alongside import SwiftCN. The file contains related composable parts from the same family. Its dependencies use public package APIs, so copied and imported components can coexist.
To own the styling engine too, download the complete source bundle. It contains every component, the .tw engine, its recipes, and the MIT license. Keep those files in one module and remove import SwiftCN from the usage example.
import SwiftUI
import SwiftCN
public struct CNSlider: View {
private let title: LocalizedStringKey
@Binding private var value: Double
private let range: ClosedRange<Double>
private let step: Double
private let classes: TWClasses
private let onEditingChanged: (Bool) -> Void
public init(_ title: LocalizedStringKey, value: Binding<Double>, in range: ClosedRange<Double> = 0...1,
step: Double = 0.01, classes: TWClasses = "", onEditingChanged: @escaping (Bool) -> Void = { _ in }) {
precondition(range.lowerBound.isFinite && range.upperBound.isFinite && step.isFinite && step > 0)
self.title = title; _value = value; self.range = range; self.step = step
self.classes = classes; self.onEditingChanged = onEditingChanged
}
public var body: some View {
Slider(value: $value, in: range, step: step, onEditingChanged: onEditingChanged) { Text(title) }
.tw(cn("slider", classes)).cnControlUtilities()
}
}
public struct CNProgress: View {
private let title: LocalizedStringKey
private let value: Double?
private let total: Double
private let classes: TWClasses
public init(_ title: LocalizedStringKey, value: Double? = nil, total: Double = 1, classes: TWClasses = "") {
precondition(total.isFinite && total > 0)
self.title = title; self.value = value.map { $0.isFinite ? min(total, max(0, $0)) : 0 }
self.total = total; self.classes = classes
}
public var body: some View {
ProgressView(title, value: value, total: total).tw(cn("progress feedback-motion", classes), value: value, animationScope: .content).cnControlUtilities()
}
}
public struct CNDatePicker: View {
@Environment(\.calendar) private var calendar
@Environment(\.locale) private var locale
@Environment(\.timeZone) private var timeZone
@FocusState private var fieldFocused: Bool
@FocusState private var triggerFocused: Bool
@State private var calendarPresented = false
private let title: LocalizedStringKey
@Binding private var date: Date
private let range: ClosedRange<Date>
private let components: DatePickerComponents
private let classes: TWClasses
public init(_ title: LocalizedStringKey, selection: Binding<Date>,
in range: ClosedRange<Date> = Date.distantPast...Date.distantFuture,
displayedComponents: DatePickerComponents = .date, classes: TWClasses = "") {
self.title = title; _date = selection; self.range = range; components = displayedComponents; self.classes = classes
}
private var format: Date.FormatStyle {
Date.FormatStyle(date: .numeric, time: components.contains(.hourAndMinute) ? .shortened : .omitted,
locale: locale, calendar: calendar, timeZone: timeZone)
}
private var selection: Binding<Date> {
Binding(get: { date }, set: { proposed in
var localCalendar = calendar; localCalendar.timeZone = timeZone
date = CNDatePickerSelection.resolve(proposed, preservingTimeFrom: date,
preserveTime: !components.contains(.hourAndMinute), in: range, calendar: localCalendar)
})
}
private var calendarSelection: Binding<Date> {
Binding(get: { date }, set: { selected in
var localCalendar = calendar; localCalendar.timeZone = timeZone
date = CNDatePickerSelection.resolve(selected, preservingTimeFrom: date,
preserveTime: true, in: range, calendar: localCalendar)
if !components.contains(.hourAndMinute) { calendarPresented = false }
})
}
private var field: some View {
TextField(title, value: selection, format: format).textFieldStyle(.plain)
.focused($fieldFocused).tw("input-group-field")
.accessibilityLabel(Text(title))
}
private var calendarButton: some View {
Button { fieldFocused = false; calendarPresented.toggle() } label: {
Image(systemName: "calendar").accessibilityHidden(true)
}
.focused($triggerFocused)
// An input adornment, not a standalone button: it keeps a plain button inside the field.
.buttonStyle(.tw("px-2 py-0 text-mutedForeground hover:text-foreground"))
.accessibilityLabel("Choose date")
.accessibilityValue(calendarPresented ? Text("Expanded") : Text("Collapsed"))
}
private var calendarContent: some View {
VStack(spacing: 8) {
CNCalendar(title, selection: calendarSelection, in: range,
classes: "date-picker-calendar", dayClasses: calendarDayClasses)
if components.contains(.hourAndMinute) {
DatePicker("Time", selection: $date, in: range, displayedComponents: .hourAndMinute)
.datePickerStyle(.compact).tw("px-3")
CNButton("Done", variant: .ghost, action: { calendarPresented = false })
}
}.tw("popover p-1")
}
@ViewBuilder public var body: some View {
if components.contains(.date) {
VStack(alignment: .leading, spacing: 8) {
CNLabel { Text(title) }
CNInputGroup(focus: $fieldFocused) {
field
calendarButton
}
.cnPopover(isPresented: $calendarPresented, alignment: .center) { calendarContent }
}.tw(cn("date-picker", classes)).cnControlUtilities()
.onChange(of: calendarPresented) { _, open in
if open { fieldFocused = false }
else { triggerFocused = true }
}
} else {
DatePicker(title, selection: $date, in: range, displayedComponents: components)
.datePickerStyle(.compact).tw(cn("date-picker", classes)).cnControlUtilities()
}
}
private var calendarDayClasses: TWClasses {
#if os(iOS)
""
#else
"h-[32]"
#endif
}
}
enum CNDatePickerSelection {
static func resolve(_ proposed: Date, preservingTimeFrom current: Date, preserveTime: Bool,
in range: ClosedRange<Date>, calendar: Calendar) -> Date {
let resolved: Date
if preserveTime {
let time = calendar.dateComponents([.hour, .minute, .second], from: current)
resolved = calendar.date(bySettingHour: time.hour ?? 0, minute: time.minute ?? 0,
second: time.second ?? 0, of: proposed) ?? proposed
} else {
resolved = proposed
}
return min(max(resolved, range.lowerBound), range.upperBound)
}
}
