Component library
Checkbox
Native checkbox composition, package imports, and editable Swift source.

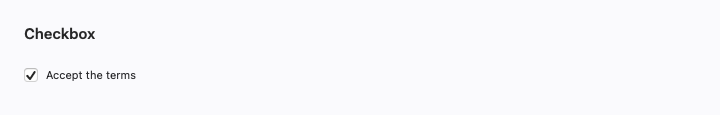

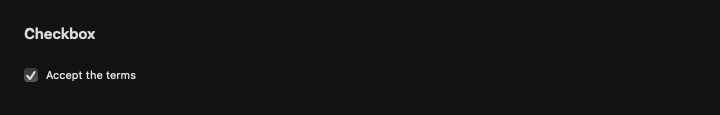

Preview
Use it
Import SwiftCN to use CNCheckbox directly. This complete example also runs in the native component gallery.
import SwiftUI
import SwiftCN
struct CheckboxExample: View {
@State private var isOn = true
var body: some View {
VStack(alignment: .leading, spacing: 12) {
CNCheckbox("Accept the terms", isOn: $isOn)
}
}
}Native behavior
The complete styled row activates the binding, including label spacing and padding. The native Toggle configuration owns checked state, while one Button handles the complete row. macOS keeps its system checkbox appearance and a 32-point minimum height. iOS uses a 44-point minimum width and height. Disabled rows cannot activate.
Style and compose
Visual recipes use .tw classes. Append classes: to override a recipe locally, or change the recipe in TWGlobalRules.named for your subtree. Native layout and interaction modifiers remain SwiftUI APIs. For control colors, append cn-tint-[primary], another theme token, or an interpolated Color.
Motion recipes are editable too: control-motion uses a 150 ms smooth response, disclosure-motion uses a 250 ms spring, and feedback-motion uses a 200 ms smooth response. Set a recipe to animate-none in your global rules to turn it off. Presets respect Reduce Motion. Static components stay still; native scrolling, drag tracking, and platform presentation keep their own gestures.
Action groups and card, dialog, and questionnaire footers stack when their content does not fit. The native layout preserves the same child controls during this change.
View builders preserve native child content. Native Button roles, labels, keyboard shortcuts, submit actions, and presentation modifiers still work. A string recipe does not replace a native control API or a typed chart mark.
Own the source
Copy the complete file below into your app alongside import SwiftCN. The file contains related composable parts from the same family. Its dependencies use public package APIs, so copied and imported components can coexist.
To own the styling engine too, download the complete source bundle. It contains every component, the .tw engine, its recipes, and the MIT license. Keep those files in one module and remove import SwiftCN from the usage example.
import SwiftUI
import SwiftCN
public struct CNSwitch<Label: View>: View {
@Binding private var isOn: Bool
private let classes: TWClasses
private let label: Label
public init(isOn: Binding<Bool>, classes: TWClasses = "", @ViewBuilder label: () -> Label) {
_isOn = isOn; self.classes = classes; self.label = label()
}
public init(_ title: LocalizedStringKey, isOn: Binding<Bool>, classes: TWClasses = "") where Label == Text {
self.init(isOn: isOn, classes: classes) { Text(title) }
}
public var body: some View {
Toggle(isOn: $isOn) { label }.toggleStyle(CNSwitchStyle(classes: classes)).cnControlUtilities()
}
}
public struct CNCheckbox<Label: View>: View {
@Binding private var isOn: Bool
private let classes: TWClasses
private let label: Label
public init(isOn: Binding<Bool>, classes: TWClasses = "", @ViewBuilder label: () -> Label) {
_isOn = isOn; self.classes = classes; self.label = label()
}
public init(_ title: LocalizedStringKey, isOn: Binding<Bool>, classes: TWClasses = "") where Label == Text {
self.init(isOn: isOn, classes: classes) { Text(title) }
}
public var body: some View {
Toggle(isOn: $isOn) { label }.toggleStyle(CNCheckboxStyle(classes: classes)).cnControlUtilities()
}
}
/// A styled activation surface fills gaps around the native checkbox and its label.
public struct CNCheckboxStyle: ToggleStyle {
private let classes: TWClasses
public init(classes: TWClasses = "") { self.classes = classes }
public func makeBody(configuration: Configuration) -> some View {
Button { configuration.isOn.toggle() } label: {
HStack(spacing: 8) {
#if os(macOS)
Toggle(configuration).toggleStyle(.checkbox).labelsHidden().fixedSize()
.allowsHitTesting(false).focusable(false).accessibilityHidden(true)
#else
Image(systemName: configuration.isOn ? "checkmark.square.fill" : "square")
.foregroundStyle(configuration.isOn ? AnyShapeStyle(.tint) : AnyShapeStyle(.primary))
.accessibilityHidden(true)
#endif
configuration.label
}.frame(maxWidth: .infinity, alignment: .leading)
}.buttonStyle(CNToggleSurfaceStyle(classes: cn("checkbox", classes)))
.accessibilityValue(configuration.isOn ? Text("Checked") : Text("Unchecked"))
.accessibilityAddTraits(configuration.isOn ? .isSelected : [])
.cnControlUtilities()
}
}
/// The native switch keeps its thumb gesture, keyboard handling, and accessibility.
public struct CNSwitchStyle: ToggleStyle {
private let classes: TWClasses
public init(classes: TWClasses = "") { self.classes = classes }
public func makeBody(configuration: Configuration) -> some View {
CNSwitchRow(configuration: configuration, classes: classes)
}
}
private struct CNSwitchRow: View {
let configuration: ToggleStyleConfiguration
let classes: TWClasses
@Namespace private var space
@State private var indicatorFrame = CGRect.zero
@Environment(\.isEnabled) private var isEnabled
var body: some View {
HStack(spacing: 12) {
configuration.label.allowsHitTesting(false).accessibilityHidden(true)
Spacer(minLength: 0)
Toggle(configuration).toggleStyle(.switch).labelsHidden().fixedSize()
.background { GeometryReader { geometry in
Color.clear.preference(key: CNSwitchIndicatorFrame.self, value: geometry.frame(in: .named(space)))
} }
}.tw(cn("switch", classes)).contentShape(.interaction, Rectangle())
.coordinateSpace(name: space)
.onPreferenceChange(CNSwitchIndicatorFrame.self) { indicatorFrame = $0 }
.simultaneousGesture(SpatialTapGesture(coordinateSpace: .named(space)).onEnded { value in
// The system indicator handles its own tap or drag. Only the remaining row activates here.
if isEnabled && !indicatorFrame.contains(value.location) { configuration.isOn.toggle() }
})
.cnControlUtilities()
}
}
private struct CNSwitchIndicatorFrame: PreferenceKey {
static let defaultValue = CGRect.zero
static func reduce(value: inout CGRect, nextValue: () -> CGRect) { value = nextValue() }
}
private struct CNToggleSurfaceStyle: ButtonStyle {
let classes: TWClasses
func makeBody(configuration: Configuration) -> some View {
configuration.label
.tw(classes, state: .init(isPressed: configuration.isPressed))
.contentShape(.interaction, Rectangle())
}
}
public struct CNToggle<Label: View>: View {
@Binding private var isOn: Bool
private let classes: TWClasses
private let label: Label
public init(isOn: Binding<Bool>, classes: TWClasses = "", @ViewBuilder label: () -> Label) {
_isOn = isOn; self.classes = classes; self.label = label()
}
public init(_ title: LocalizedStringKey, isOn: Binding<Bool>, classes: TWClasses = "") where Label == Text {
self.init(isOn: isOn, classes: classes) { Text(title) }
}
public var body: some View {
Toggle(isOn: $isOn) { label }.toggleStyle(CNButtonToggleStyle(classes: classes)).cnControlUtilities()
}
}
/// Toggle configuration retains its binding while the native Button owns activation.
public struct CNButtonToggleStyle: ToggleStyle {
private let classes: TWClasses
public init(classes: TWClasses = "") { self.classes = classes }
public func makeBody(configuration: Configuration) -> some View {
Button { configuration.isOn.toggle() } label: { configuration.label }
.buttonStyle(.tw(cn("bezel-prominent rounded-md text-sm font-semibold", configuration.isOn ? "toggle-selected" : "toggle-unselected", classes)))
.accessibilityValue(configuration.isOn ? Text("On") : Text("Off"))
.accessibilityAddTraits(configuration.isOn ? .isSelected : [])
}
}
public struct CNToggleGroup<ID: Hashable & Sendable>: View {
private let options: [CNOption<ID>]
@Binding private var selection: Set<ID>
private let classes: TWClasses
private let axis: Axis
public init(_ options: [CNOption<ID>], selection: Binding<Set<ID>>, axis: Axis = .horizontal, classes: TWClasses = "") {
self.options = options; _selection = selection; self.axis = axis; self.classes = classes
}
public var body: some View {
CNButtonGroup(axis: axis, classes: classes) {
ForEach(options) { option in
CNToggle(isOn: Binding(get: { selection.contains(option.id) }, set: { on in
if on { selection.insert(option.id) } else { selection.remove(option.id) }
})) { Text(option.title) }.disabled(option.isDisabled)
}
}
}
}
public struct CNSelect<ID: Hashable & Sendable>: View {
private let title: LocalizedStringKey
private let options: [CNOption<ID>]
@Binding private var selection: ID
private let classes: TWClasses
public init(_ title: LocalizedStringKey, options: [CNOption<ID>], selection: Binding<ID>, classes: TWClasses = "") {
self.title = title; self.options = options; _selection = selection; self.classes = classes
}
public var body: some View {
Picker(title, selection: $selection) {
ForEach(options) { option in Text(option.title).tag(option.id).disabled(option.isDisabled) }
}.pickerStyle(.menu).tw(cn("select", classes)).cnControlUtilities()
}
}
/// Uses automatic native picker presentation, including platform-specific keyboard behavior.
public struct CNNativeSelect<ID: Hashable & Sendable>: View {
private let title: LocalizedStringKey
private let options: [CNOption<ID>]
@Binding private var selection: ID
private let classes: TWClasses
public init(_ title: LocalizedStringKey, options: [CNOption<ID>], selection: Binding<ID>, classes: TWClasses = "") {
self.title = title; self.options = options; _selection = selection; self.classes = classes
}
public var body: some View {
Picker(title, selection: $selection) {
ForEach(options) { option in Text(option.title).tag(option.id).disabled(option.isDisabled) }
}.tw(cn("select", classes)).cnControlUtilities()
}
}
/// Native single selection. The optional binding exposes an explicit empty choice.
public struct CNRadioGroup<ID: Hashable & Sendable>: View {
private let title: LocalizedStringKey
private let options: [CNOption<ID>]
@Binding private var selection: ID?
private let allowsEmpty: Bool
private let classes: TWClasses
public init(_ title: LocalizedStringKey, options: [CNOption<ID>], selection: Binding<ID>, classes: TWClasses = "") {
self.title = title; self.options = options
_selection = Binding(get: { selection.wrappedValue }, set: { if let value = $0 { selection.wrappedValue = value } })
allowsEmpty = false; self.classes = classes
}
public init(_ title: LocalizedStringKey, options: [CNOption<ID>], selection: Binding<ID?>, classes: TWClasses = "") {
self.title = title; self.options = options; _selection = selection; allowsEmpty = true; self.classes = classes
}
public var body: some View {
let picker = Picker(title, selection: $selection) {
if allowsEmpty { Text("Choose an option").tag(Optional<ID>.none) }
ForEach(options) { option in Text(option.title).tag(Optional(option.id)).disabled(option.isDisabled) }
}.tw(cn("radio-group", classes)).cnControlUtilities()
#if os(macOS)
picker.pickerStyle(.radioGroup)
#else
picker.pickerStyle(.inline)
#endif
}
}
