Data Table
Native data table composition, package imports, and editable Swift source.

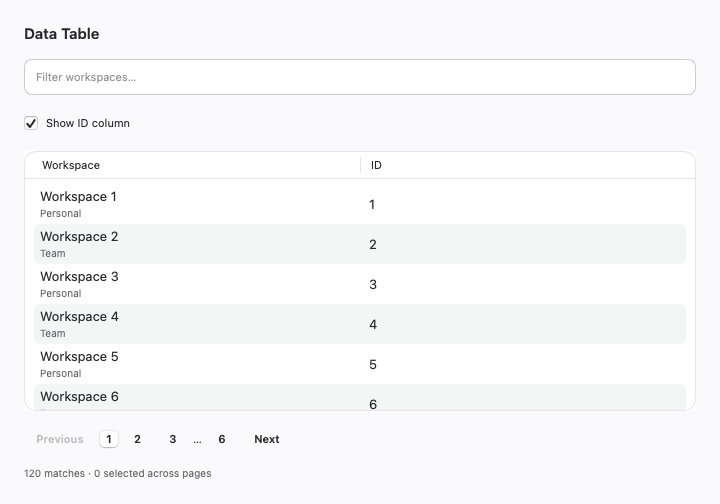

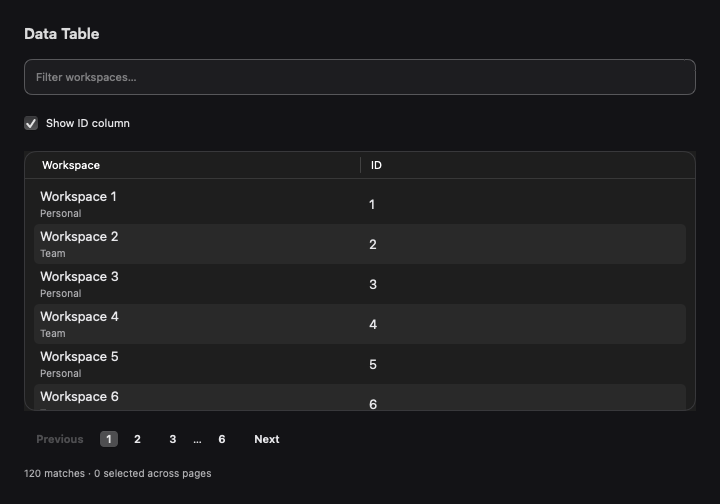

Preview


Use it
Import SwiftCN to use CNDataTable directly. This complete example also runs in the native component gallery.
import SwiftUI
import SwiftCN
struct DataTableExample: View {
private static let options = (1...120).map { CNOption(String($0), title: "Workspace \($0)", detail: $0.isMultiple(of: 2) ? "Team" : "Personal") }
@State private var rowSelection: Set<String> = []
@State private var sortOrder: [KeyPathComparator<CNOption<String>>] = []
@State private var query = ""
@State private var page = 1
@State private var showID = true
@State private var records = CNTableRecords(options)
var body: some View {
let slice = records.page(page, size: 20)
VStack(alignment: .leading, spacing: 12) {
CNInput("Filter workspaces…", text: $query)
CNCheckbox("Show ID column", isOn: $showID).disabled(!supportsColumnVisibility)
table(slice.rows)
CNPagination(page: $page, pageCount: slice.pageCount)
Text("\(slice.totalCount) matches · \(rowSelection.count) selected across pages")
.tw("text-xs text-mutedForeground")
}
.onChange(of: query) { _, _ in prepare(); page = 1 }
.onChange(of: sortOrder) { _, _ in prepare() }
}
@ViewBuilder private func table(_ rows: [CNOption<String>]) -> some View {
if #available(macOS 14.4, iOS 17.4, *) {
configurableTable(rows)
} else {
CNDataTable(rows, selection: $rowSelection, sortOrder: $sortOrder, rowsAreSorted: true, classes: "h-[260]") {
TableColumn("Workspace", value: \.title, content: workspace)
TableColumn("ID", value: \.id)
}
}
}
@available(macOS 14.4, iOS 17.4, *)
private func configurableTable(_ rows: [CNOption<String>]) -> some View {
CNDataTable(rows, selection: $rowSelection, sortOrder: $sortOrder, rowsAreSorted: true, classes: "h-[260]") {
TableColumn("Workspace", value: \.title, content: workspace)
if showID { TableColumn("ID", value: \.id) }
}
}
private func workspace(_ option: CNOption<String>) -> some View {
VStack(alignment: .leading, spacing: 3) {
Text(option.title)
if let detail = option.detail {
Text(detail).tw(rowSelection.contains(option.id) ? "text-xs" : "text-xs text-mutedForeground")
}
}
}
private var supportsColumnVisibility: Bool {
if #available(macOS 14.4, iOS 17.4, *) { true } else { false }
}
private func prepare() {
let query = query.trimmingCharacters(in: .whitespacesAndNewlines)
records = CNTableRecords(Self.options, sortOrder: sortOrder) {
query.isEmpty || $0.title.localizedStandardContains(query) || ($0.detail?.localizedStandardContains(query) ?? false)
}
}
}Native behavior
Native Table preserves selection IDs, sortable columns, and rich cell builders. CNTableRecords prepares filtered and sorted rows when your inputs change; page only slices that snapshot. Pass rowsAreSorted: true to avoid sorting prepared rows again. Use stable Sendable record IDs such as UUID, String, or Int. Native selection edits only visible rows; the host retains selections across filtering and pages. Clear the host selection to clear every page. The example composes CNInput, CNPagination, and native column visibility (iOS 17.4 or macOS 14.4 and later). Compact native tables display the first column, so the example includes record details there. CNTable is for small intrinsic-width layouts; use CNDataTable or paging for large record sets.
Style and compose
Visual recipes use .tw classes. Append classes: to override a recipe locally, or change the recipe in TWGlobalRules.named for your subtree. Native layout and interaction modifiers remain SwiftUI APIs. For control colors, append cn-tint-[primary], another theme token, or an interpolated Color.
Motion recipes are editable too: control-motion uses a 150 ms smooth response, disclosure-motion uses a 250 ms spring, and feedback-motion uses a 200 ms smooth response. Set a recipe to animate-none in your global rules to turn it off. Presets respect Reduce Motion. Static components stay still; native scrolling, drag tracking, and platform presentation keep their own gestures.
Action groups and card, dialog, and questionnaire footers stack when their content does not fit. The native layout preserves the same child controls during this change.
View builders preserve native child content. Native Button roles, labels, keyboard shortcuts, submit actions, and presentation modifiers still work. A string recipe does not replace a native control API or a typed chart mark.
Own the source
Copy the complete file below into your app alongside import SwiftCN. The file contains related composable parts from the same family. Its dependencies use public package APIs, so copied and imported components can coexist.
To own the styling engine too, download the complete source bundle. It contains every component, the .tw engine, its recipes, and the MIT license. Keep those files in one module and remove import SwiftCN from the usage example.
import SwiftUI
import SwiftCN
/// Intrinsic column widths for small, rich tables. Use CNDataTable for large record sets.
public struct CNTable<Content: View>: View {
@State private var viewportWidth: CGFloat = 0
@Environment(\.twTheme) private var theme
private let classes: TWClasses
private let content: Content
public init(_ classes: TWClasses = "", @ViewBuilder content: () -> Content) { self.classes = classes; self.content = content() }
public var body: some View {
ScrollView(.horizontal) {
Grid(alignment: .leading, horizontalSpacing: 0, verticalSpacing: 0) { content }
.frame(minWidth: viewportWidth, alignment: .leading)
}.fixedSize(horizontal: false, vertical: true)
.scrollBounceBehavior(.basedOnSize, axes: .horizontal)
.onGeometryChange(for: CGFloat.self, of: { $0.size.width }) { viewportWidth = $0 }
.tw(cn("table", classes)).clipShape(RoundedRectangle(cornerRadius: theme.radius(.lg)))
}
}
public struct CNTableRow<Content: View>: View {
private let isSelected: Bool
private let onSelect: (() -> Void)?
private let classes: TWClasses
private let content: Content
public init(isSelected: Bool = false, onSelect: (() -> Void)? = nil, classes: TWClasses = "", @ViewBuilder content: () -> Content) {
self.isSelected = isSelected; self.onSelect = onSelect; self.classes = classes; self.content = content()
}
public var body: some View {
GridRow { content }.tw(cn("table-row", isSelected ? "table-row-selected" : "", classes))
.environment(\.cnTableRowAction, onSelect)
.overlay(alignment: .bottom) { CNSeparator().allowsHitTesting(false) }
.accessibilityElement(children: .contain).accessibilityAddTraits(isSelected ? .isSelected : [])
.accessibilityActions {
if let onSelect { Button("Toggle row selection", action: onSelect) }
}
}
}
private struct CNTableRowAction: EnvironmentKey {
static var defaultValue: (() -> Void)? { nil }
}
private extension EnvironmentValues {
var cnTableRowAction: (() -> Void)? {
get { self[CNTableRowAction.self] }
set { self[CNTableRowAction.self] = newValue }
}
}
private struct CNTableCellActivation: ViewModifier {
@Environment(\.cnTableRowAction) private var onSelect
@Environment(\.isEnabled) private var isEnabled
func body(content: Content) -> some View {
content.contentShape(.interaction, Rectangle())
.gesture(TapGesture().onEnded { if isEnabled { onSelect?() } },
including: onSelect == nil ? .subviews : .all)
}
}
public struct CNTableCell<Content: View>: View {
private let alignment: Alignment
private let classes: TWClasses
private let content: Content
public init(_ classes: TWClasses = "", alignment: Alignment = .leading, @ViewBuilder content: () -> Content) {
self.classes = classes; self.alignment = alignment; self.content = content()
}
public init(_ text: LocalizedStringKey, classes: TWClasses = "", alignment: Alignment = .leading) where Content == Text {
self.classes = classes; self.alignment = alignment; content = Text(text)
}
public var body: some View {
content.frame(maxWidth: .infinity, maxHeight: .infinity, alignment: alignment).tw(cn("table-cell", classes))
.modifier(CNTableCellActivation())
.gridColumnAlignment(alignment.horizontal)
}
}
public struct CNTableHead<Content: View>: View {
private let alignment: Alignment
private let classes: TWClasses
private let content: Content
public init(_ classes: TWClasses = "", alignment: Alignment = .leading, @ViewBuilder content: () -> Content) {
self.classes = classes; self.alignment = alignment; self.content = content()
}
public init(_ text: LocalizedStringKey, classes: TWClasses = "", alignment: Alignment = .leading) where Content == Text {
self.classes = classes; self.alignment = alignment; content = Text(text)
}
public var body: some View {
content.frame(maxWidth: .infinity, maxHeight: .infinity, alignment: alignment).tw(cn("table-header", classes))
.gridColumnAlignment(alignment.horizontal).accessibilityAddTraits(.isHeader)
}
}
public struct CNTableCaption: View {
private let title: LocalizedStringKey
private let classes: TWClasses
public init(_ title: LocalizedStringKey, classes: TWClasses = "") { self.title = title; self.classes = classes }
public var body: some View { Text(title).tw(cn("table-caption", classes)) }
}
/// A native column builder supports rich cells and sortable key paths without a dynamic-column OS restriction.
public struct CNDataTable<Row: Identifiable, Columns: TableColumnContent>: View
where Row.ID: Sendable, Columns.TableRowValue == Row, Columns.TableColumnSortComparator == KeyPathComparator<Row> {
private let rows: [Row]
private let columns: Columns
@Binding private var selection: Set<Row.ID>
@Binding private var sortOrder: [KeyPathComparator<Row>]
private let rowsAreSorted: Bool
private let selectionScope: CNTableSelection<Row.ID>
private let classes: TWClasses
public init(_ rows: [Row], selection: Binding<Set<Row.ID>>, sortOrder: Binding<[KeyPathComparator<Row>]>,
rowsAreSorted: Bool = false, classes: TWClasses = "",
@TableColumnBuilder<Row, KeyPathComparator<Row>> columns: () -> Columns) {
self.rows = rows; self.rowsAreSorted = rowsAreSorted
selectionScope = CNTableSelection(Set(rows.map(\.id)))
self.columns = columns(); _selection = selection; _sortOrder = sortOrder; self.classes = classes
}
public var body: some View {
Table(rowsAreSorted || sortOrder.isEmpty ? rows : rows.sorted(using: sortOrder),
selection: selectionScope.binding($selection), sortOrder: $sortOrder) { columns }.tw(cn("data-table", classes)).cnControlUtilities()
}
}
/// Native selection edits only the visible records. The host owns selections on other pages.
/// Use stable value IDs, such as UUID, String, or Int, that conform to Sendable.
public struct CNTableSelection<ID: Hashable & Sendable>: Sendable {
private let visible: Set<ID>
public init(_ visible: Set<ID>) { self.visible = visible }
public func binding(_ selection: Binding<Set<ID>>) -> Binding<Set<ID>> {
Binding(get: { selection.wrappedValue.intersection(visible) }, set: { replacement in
selection.wrappedValue = selection.wrappedValue.subtracting(visible).union(replacement.intersection(visible))
})
}
}
/// Prepare records when data, filters, or ordering change. Paging only slices this snapshot.
/// Keep selection keyed by record ID in the host, including records on other pages.
public struct CNTableRecords<Row> {
public let rows: [Row]
public init(_ rows: [Row], sortOrder: [KeyPathComparator<Row>] = [], filter: ((Row) -> Bool)? = nil) {
let filtered = filter.map { rows.filter($0) } ?? rows
self.rows = sortOrder.isEmpty || filtered.count < 2 ? filtered : filtered.sorted(using: sortOrder)
}
public func page(_ number: Int, size: Int = 50) -> CNTablePage<Row> {
precondition(size > 0, "Page size must be positive.")
let count = rows.count / size + (rows.count % size == 0 ? 0 : 1)
let page = count == 0 ? 0 : min(count, max(1, number))
let start = page == 0 ? 0 : (page - 1) * size
let end = start + min(size, rows.count - start)
return CNTablePage(rows: Array(rows[start..<end]), number: page, pageCount: count, totalCount: rows.count)
}
}
public struct CNTablePage<Row> {
public let rows: [Row]
public let number: Int
public let pageCount: Int
public let totalCount: Int
}
